Lamination Machine (new product)              Download Catalog

Special for:
　‧Sandwich Lamination
　　(PP Woven + Kraft Paper or PP Woven + BOPP)
　‧Single Side & Double Side Lamination

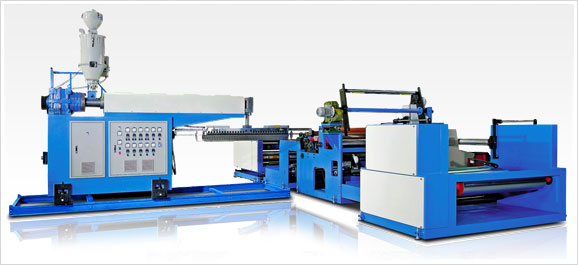

Lamination Machine

Feature

“Touch Screen Type” Operation Panel & Synchronized System as Standard Equipment

Line Speed: Max 120 meter/min

Equipped Auto Roll Changing System

Major Specifications

Model
Sandwich Lamination
Model:LM90-1500/SW
Single Side & Double Side Lamination
Model:LM90-1600/SD
》USAGE
PP/PE Woven Cloth Lamination with OPP or Kraft Paper applicable.
Single Side coating of PP High Denier Woven Cloth Double Side coating of PP Tubular Woven
》SCREW DIAMETER & L/D
Ø90 MM, 32 /1
》CAPACITY
150 KGS/HR
》MAIN MOTOR
60 HP
》T-DIE LENGTH
1700 MM
1650 MM
》LINE SPEED
MAX. 120 Meter /Min
》PRODUCTION WIDTH
800-1500 mm
Single Side: 850-1450 mm
Double Side: 380-680 mm
》SHIPPING TOTAL CONTAINER
1x 40HQ + 1 x 40”
